40FT High Cube Open Side Container
Full-Length Access. High-Cube Efficiency. Industrial Strength.
The 40FT High Cube Open Side Container delivers maximum accessibility and internal volume, combining standard rear cargo doors with a full-length, side-opening system. Designed for loading efficiency and oversized cargo handling, this unit is ideal for commercial, construction, logistics, and modular conversion environments.
Built from anti-corrosive CORTEN steel and equipped with full CSC certification, this container offers the structural reliability and ISO compatibility required for both static and intermodal deployment.
Product Specifications
| Specification | Metric (mm) |
|---|---|
| External Dimensions (L × W × H) | 12,192 × 2,438 × 2,896 |
| Internal Dimensions (L × W × H) | 12,032 × 2,430 × 2,471 |
| Rear Door Opening (W × H) | 2,358 × 2,388 |
| Side Door Opening (W × H) | 11,556 × 2,311 |
| Internal Volume | 72.20 m³ |
| Tare Weight | 6,580 kg |
| Maximum Payload | 23,900 kg |
| Gross Weight Rating | 30,480 kg |
Key Structural Features

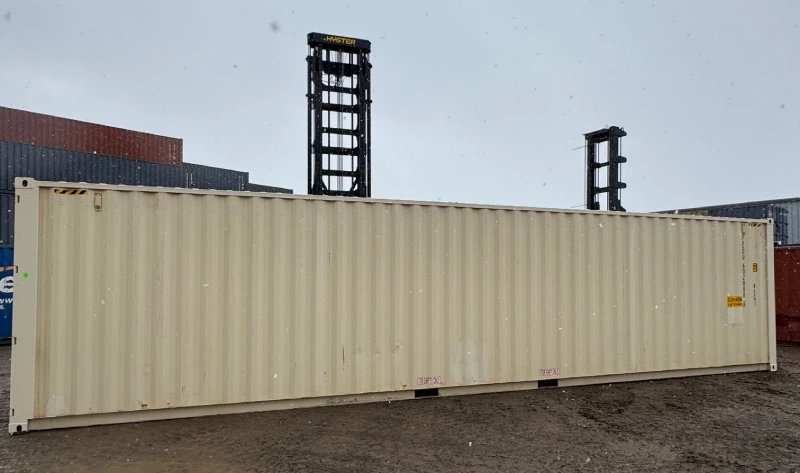

- Full-Length Side Access Doors

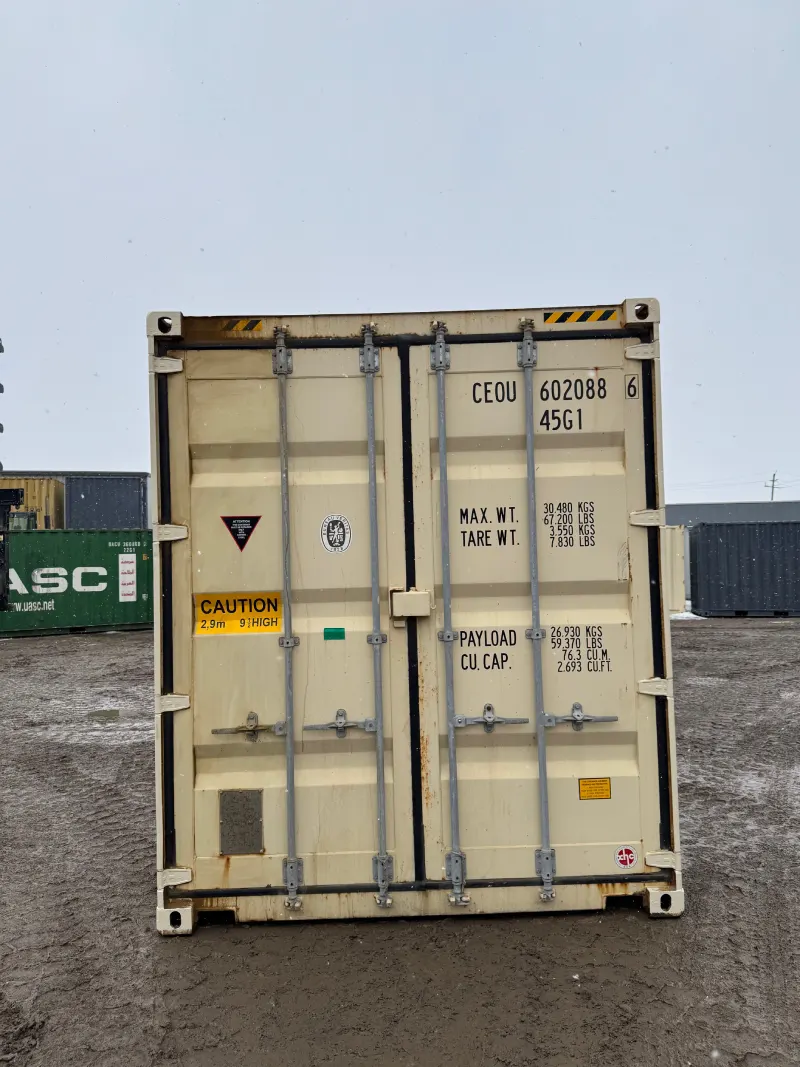

Swing-out panels with reinforced hinges and vertical locking bars. Ideal for wide or irregular cargo loading. - Rear Double Cargo Doors
Standard ISO-specified doors with lockable handles and compression gaskets for weather resistance. - Construction
All-weather CORTEN steel, corrugated walls and roof, ISO corner castings for intermodal compatibility. - Flooring

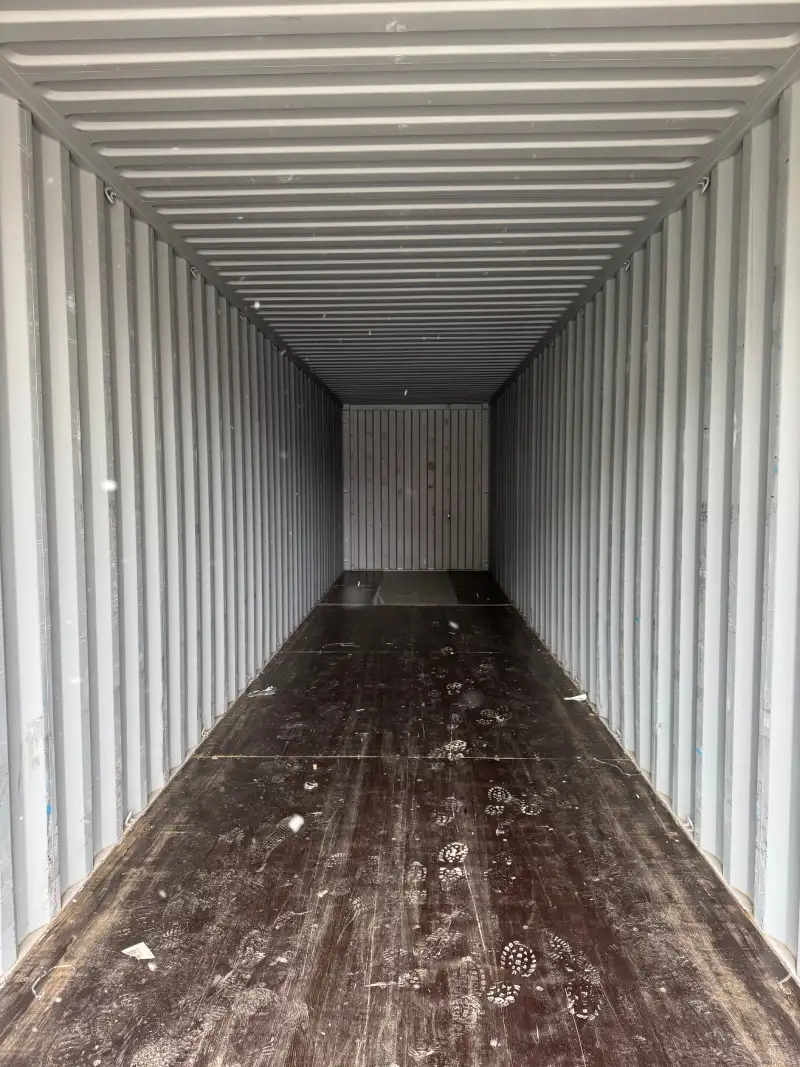

Forklift-ready, marine-grade plywood flooring fixed to steel cross-members. Sealed for moisture resistance and surface integrity. - Ventilation
Passive airflow via built-in air vents to maintain interior air circulation in varying climates. - Security
Integrated lockboxes on rear and side doors support standard padlocks for tamper resistance. - Handling Compatibility
Two-way forklift pockets for maneuverability, ISO corner castings for stacking and crane lifting. - Paint Finish
RAL 5013 Blue by default; custom RAL color options available upon request.
Functional Use Cases
Industrial Equipment Storage
Accommodates long-form machinery, pipelines, and oversized components with side-loading flexibility.
Construction Site Deployment
Supports tools, fixtures, and rolling materials for staged workflows. Full side access speeds material retrieval and return.
Modular Conversion Projects
Ideal foundation for containerized retail units, exhibition structures, mobile clinics, or wide-display installations.
Agricultural & Freight Logistics
Simplifies side-loading of pallets, crates, or bulk materials where traditional rear-door access is limiting.
Events, Retail & Displays
Transforms into a walk-in venue or open-access container shop for temporary or mobile operations.
Structural Integrity & Compliance
- All containers are CSC plated and certified for international shipping
- Side doors are wind-rated and reinforced for structural consistency
- Flooring is sealed and fastened to steel underframe
- Roof and walls feature corrugated reinforcement for long-haul durability
- ISO-compliant corner castings for stacking, rail, or sea transport
Customization Options
Custom paint finishes and internal modifications (e.g., shelving, lighting, security upgrades) are available upon request. Each container can be tailored for modular applications or industry-specific configurations.
